Tuesday, October 11, 2011

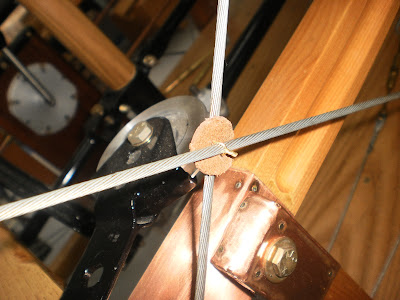

My goal has been to get all the little things done between the firewall and the tail post. Things like cotter keying every bolt, safety wiring the turnbuckles etc. One of the last things to do is put the little leather anti-chaffing disks in between every wire in every bay. Nothing fancy. I sharpened the end of a piece of tubing and hit it with a hammer to cut out the disks. Tedious, but pretty neat.

Ron and I reinstalled the engine and radiator so sheet metal work can begin. We are also running all the lines (oil temp, water temp, electrical etc) and having the engine in place is a big help.

When we installed the water pump, it did not fit. My pump was one of the new parts manufactured by Denny Trone. We noticed that the pump shaft was bigger than the drive!

So, the impeller was pulled out of the pump.

This is where the pump mounts.

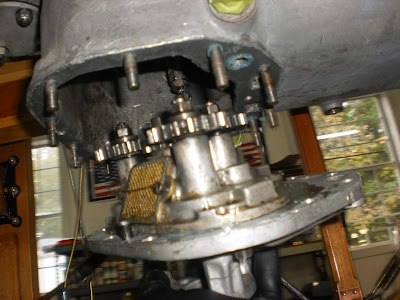

The drive was removed which gave me a good look at the oil pump, too.

Here you can see the differences in the drive and shaft. The shaft will go to the machine shop this week.

The oil temperature bulb goes into the oil screen housing. Should be an easy installation, right? It didn't work out that way!

The bulb threads into the cap, but there is no lip to stop the bulb from going forward. So, that has to go to the machine shop also for some welding and machining.

Lastly, the booster mag lines were made. I got some of the 16 gauge cloth covered wire from the Brillman Co. and installed the ends with a crimper.

The wires were fished through some special old time automotive style conduit up to the firewall.

That's it for now....Enjoy
