Engine Bearer Brackets

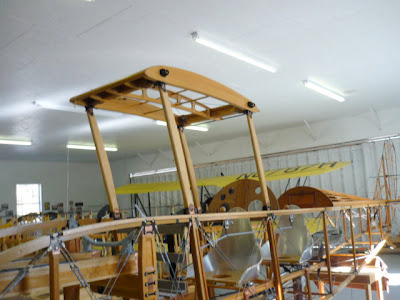

After a trip to Aircraft Spruce, I got the long 5/16 in. bolts needed to assemble the center section. The Jenny has a stagger of 16 inches between the leading edge of the bottom wing and the leading edge of the top wing. Just from this trial fit, I figured out the center section has to lean forward another 2 inches. That adjustment will happen the next time I have help at the shop. Installing the center section is not a one person job!



Today the lower engine bearer support holes were drilled.

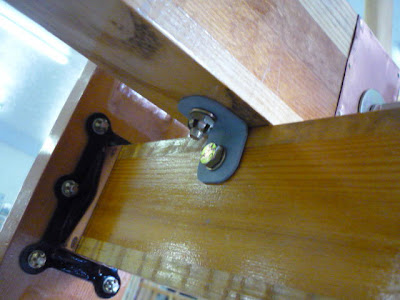

Here's the bracket in place.



While the drill was handy, holes were drilled for the eyebolts.

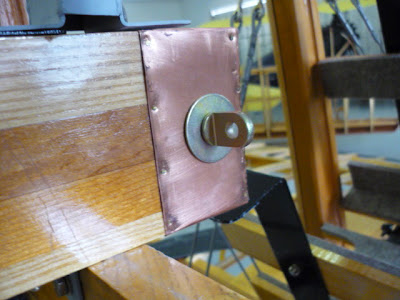

A wrapped cable will connect this eyebolt to the lower Station 3 fitting.



Also drilled the front engine bearer holes.



More soon. Enjoy!

Brian
