Curtiss Jenny Restoration

Welcome! We hope you enjoy following the restoration process of a 1918 Curtiss JN4D Jenny. Once completed, the aeroplane will be flown and displayed at the Candler Field Museum in Williamson GA (30 miles south of Atlanta). You can contact me below by clicking on "VIEW MY PROFILE"

My Photo
Name:
Location: Peachtree City, Georgia, United States

Monday, April 19, 2010

Tail post

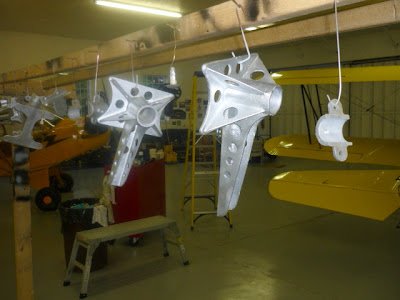

Ah, the castings have now been painted their aluminum color. They are ready for installation now.



Decided to trim the tail post yesterday. I made this post extra long with the idea of trimming it to size once the rudder and stabilizer braces were in place. I used a coping saw to make the cut.

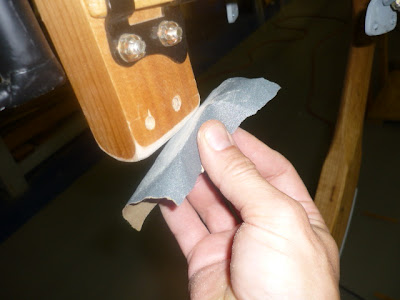

Then the shape was sanded with the belt sander and finished by hand...



...and given some varnish to finish it off.



Since we mixed up a batch of varnish, Glen gave the rear instrument panel its first coat.

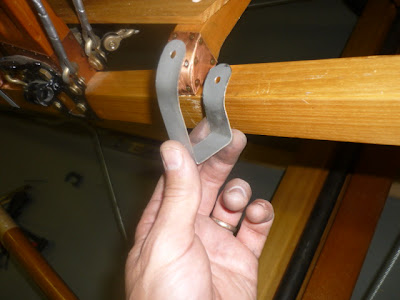

We also made the front floorboard attach brackets. Since the lower longeron curves, the bracket must have an angle to match the wooden support.



More soon. Enjoy

Brian
