Sunday, January 24, 2010

firewall and turtledeck work

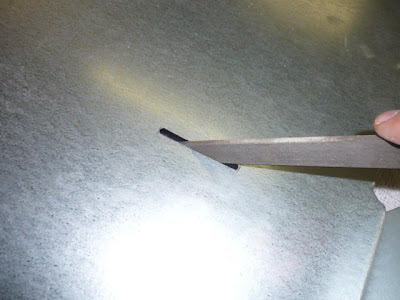

Cut the slots in the firewall today. This is where the fuel tank cradle attaches to the engine bearers. This was cut using a drill (1/4 in. bit) in successive holes followed by cleaning with a Dremel tool and finally filed smooth.

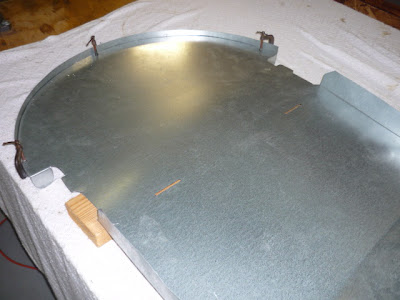

Two cuts were made.



I spent a bunch of time ensuring that each stringer was 1/4 in. above the bulkhead.



For you future Jenny builders - towards the last two bulkheads, the stringers must sink down to 3/16 in. This is because the side stringers (when I put them on soon) twist and lay flat at the end. The side stringers are 3/16 in. so it makes everything flush. When I get to this point, I'll take some detail shots to show you.

For now, I just deepened the hole with the Dremel tool.



And measured 3/16 in.



That's all for today. More soon

Brian
