Saturday, December 19, 2009

Turtledeck

Decided to tackle the turtledeck today. I didn't pre-cut the grooves in the bulkheads because I wanted to make sure the stringers were nice and straight. I did cut the grooves in the first bulkhead and the second to last bulkhead. Connecting the two gave me natural straight lines.



Once the stringers were in place, I marked their location on the bulkheads.



Putting a dado blade in the table saw, and setting it to 1/4 in., the grooves were cut. The cuts were 1/4 in. deep which when the stringers were inserted left 1/4 in. sticking out.

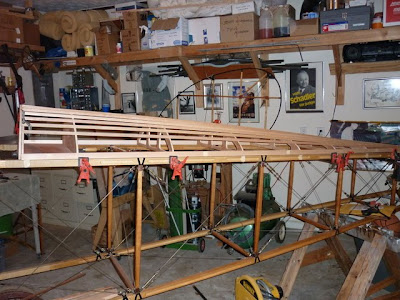

Then the bulkheads were reinserted and the stringers put into the grooves.



Nice and straight.



Enjoy
Brian
