Monday, October 05, 2009

Tail Skid

Worked on the tail skid today. First step was to bore a 9/16 in hole in the ash skid to accept the brass bushing.



Here's the bushing. I was able to order a 9/16 OD bushing with a 7/16 ID from MSC. The excess was cut off with a bandsaw.

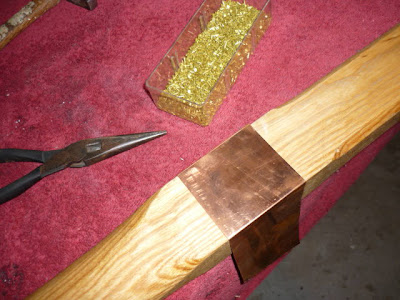

Then, the brass was put on the skid and the hole drilled for the bolt.



Finally, I get to use a new casting! Here is where the tail skid bungee casting goes.

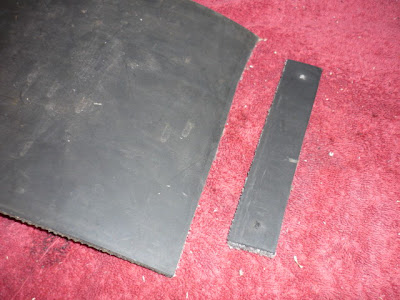

The tail skid has a rubber bumper, so a 1 in. strip was cut from some 1/4 in. rubber material.




And mounted on the skid.




Also, the top and bottom steel washers were drilled and installed. Here's a picture of the top one.





In case you're wondering - here's how everything fits together !







This was a trial fit. Now the metal pieces need to be painted black and the skid needs a final coat of varnish.







The shoe needs to be fitted, but that's for the next shop day.



Sorry for the little hiatus from the Jenny project, but I went to the Bucker fly-in at Live Oak FL. Had a great time. Flew lots of aerobatics, ate too much food and told too many stories. Mine was one of fourteen Buckers that flew to the event. It was a fine weekend.

Got a busy month coming up. Enjoy

Brian
