Wednesday, June 04, 2008

Engine Mount rings

My next step is to put the engine in place and get the radiator/ lower spider plate lined up. So, I decided to firm up the engine bearers. They are held together with some bracketry, U-bolts and some thru-bolts.


To make the U bolts, I got a big bar of 2 in. steel stock and rounded the corners. Then, some 1/4 in. round steel was bent to the U shape.





You will need four U bolts. I left the legs longer than needed to make the bending process easier. The legs were then cut to 7 1/16 in.





The U bolts sit on top of the engine bearer. There is a small 3/8 in. wide plate the will be brazed to the U bolt. These were cut out of .060 sheet steel, drilled and filed with a bevel.

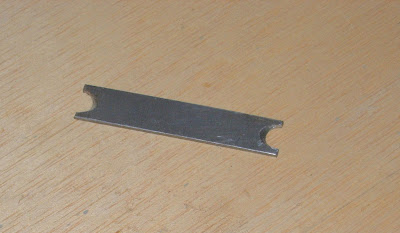

Here's the plate ready for brazing.









This is how it goes on the engine bearer.





Thankfully, I had a drawing for this!

Next step is brazing and cutting the threads. Till then,

Brian
