Tuesday, April 24, 2007

Longeron jigs

After doing some thinking the other day, I decided to make a better longeron jig. I bought some MDF board at Lowes. This was much nicer to shape than plywood. And it came in 3/4 in thickness, so two pieces equal the width of the longeron.

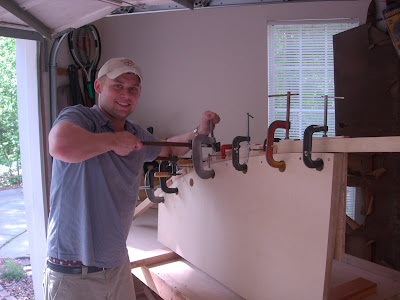

Below is my friend and fellow Bucker pilot Dave Daugherty. He's clamping the upper longeron in the new jig.

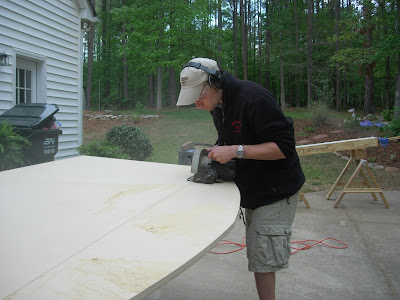

Here's the lower longeron jig being cut.

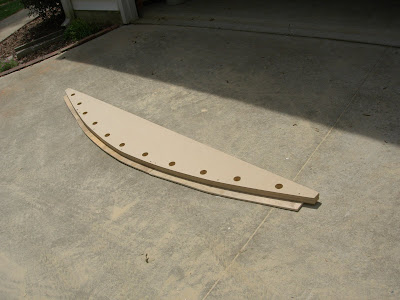

Finished product. A bit of advice - Just when you think you allowed enough extra curve for springback, add even more! I was amazed at the woods memory. This will make your life easier.



This jig has a deeper bend. We'll see how it goes when we fire up the steamer next week.

Brian
